HQ Plastic Core Sample Tray | UV Stable 4 row Core Box

Indotray HQ

Plateau à carottes en plastique Indotray HQ

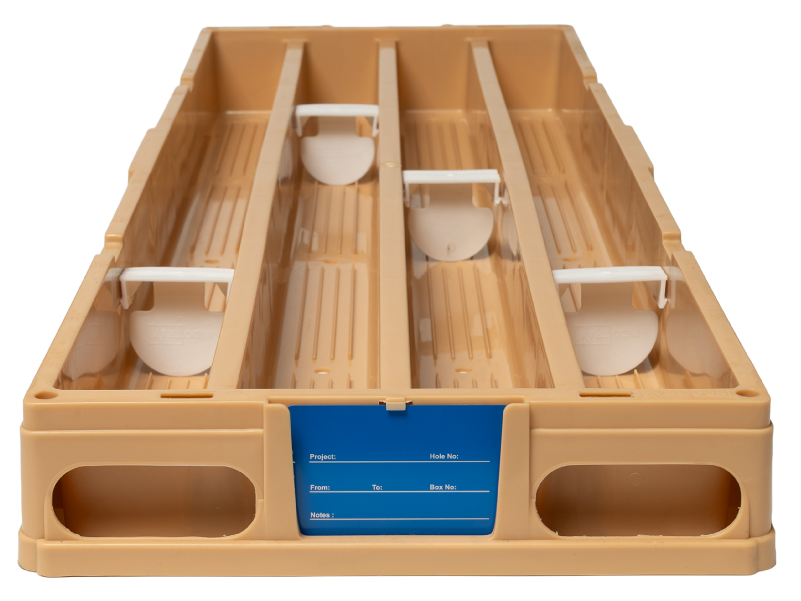

Le plateau à carottes INDOTRAY HQ assure le stockage sécurisé, le transport et la description des carottes HQ. Grâce à ses 4 rangées et à sa capacité de 4 mètres de carottes par plateau, il constitue une solution robuste, éprouvée sur le terrain et adaptée aux sites d’exploration comme aux carothèques de longue durée.

Caractéristiques principales

Compatibilité avec les carottes : HQ
Diamètre des carottes : 63,5 mm
Nombre de rangées : 4
Capacité : 4 mètres de carottes par plateau
Longueur du plateau : 107,5 cm
Largeur du plateau : 37,5 cm
Hauteur du plateau : 8,5 cm
Matériau : copolymère de polypropylène 100 % vierge
Stabilisation UV : oui
Capacité de verrouillage en colonne : jusqu’à 10 plateaux

Télécharger la brochure Demander un devis

Caractéristiques techniques

Caractéristiques techniques détaillées

Aperçu des dimensions, de la capacité et des propriétés du matériau du plateau.

Dimensions

Longueur : 107,5 cm
Largeur : 37,5 cm
Hauteur : 8,5 cm

Capacité

4 rangées
1 mètre par compartiment
Capacité totale : 4 mètres de carottes HQ par plateau

Construction

Paroi extérieure renforcée jusqu’à 6 mm d’épaisseur
Épaisseur minimale des parois du plateau : 1,75 mm
Nervures surélevées pour un meilleur maintien des carottes
Orifices de drainage dans le fond
Orifices d’angle renforcés pour les tiges de maintien de l’empilage

Identification et manutention

8 poignées de levage
2 logements pour plaques d’identification
Repère de départ et graduations gravés

Caractéristiques et avantages

Dimensions adaptées au maintien des carottes HQ
Structure robuste pour la manutention sur le terrain et les utilisations répétées
Conception empilable pour le transport et le stockage
Polymère vierge stabilisé aux UV, adapté à une exposition extérieure

Accessoires

Composants complémentaires

All trays: 1075 mm × 375 mm footprint · Compatible for cross-size stacking

Plaques d’identification en aluminium

Champs d’identification du plateau préimprimés

Couvercle universel empilable

Compatible avec le plateau HQ

Séparateurs HQ

Polypropylène vierge stabilisé aux UV

Kit de maintien en colonne

Jusqu’à 10 plateaux HQ peuvent être verrouillés ensemble en colonne

HQ Plastic Core Tray

Frequently Asked Questions

Each Indotray HQ plastic core tray is designed specifically for HQ diamond drill core with a nominal core diameter of 63.5 mm.

The tray has 4 individual rows, with approximately 1 metre of core per row.

Total drill core storage capacity is 4 metres per tray.

The heavy-duty 4-row layout for larger HQ drill core keeps core samples organized for geological logging, photography, sampling, transport and long-term core storage.

This makes it suitable for mineral exploration companies, diamond drilling contractors, mining projects and geological core libraries.
Overall tray dimensions: 1075 × 375 × 85 mm.

Core compatibility: HQ, nominal core diameter 63.5 mm.

Configuration: 4 rows with a total capacity of 4 metres of drill core.

Material: high-strength PP Copolymer construction with UV stabilization.

All Indotray BQ, NQ, HQ and PQ trays share a common 1075 × 375 mm footprint, supporting cross-size stacking and organized core shed storage.

The tray incorporates drainage, ID tag locations, measurement markings, lifting handles and reinforced structural features.
The Indotray HQ core tray is engineered to safely support a 60 kg fully loaded 4-metre HQ drill core during normal field handling and core storage.

Actual loaded weight varies significantly with rock density, mineralization, moisture and recovery, so a single core weight should not be assumed for every project.

High-strength PP Copolymer, reinforced ribs, thick outer support walls and the tray geometry distribute the core load across the structure.

The design is intended to minimize bending, twisting and sagging when the tray is correctly supported and handled.

For tenders or projects requiring a certified maximum load in kilograms, Indotray can provide the applicable technical/test information rather than relying on a generic rock-weight estimate.
The exact number of trays per 20-ft, 40-ft or 40-ft High Cube container depends on the packing configuration, palletization, nesting arrangement and whether lids, separators, ID tags or other accessories are included.

For bulk export orders, Indotray can prepare a container loading plan to maximize the number of plastic core trays per shipment and reduce freight cost per tray.

As a standard tray only configuration, for 20 Ft Container – 1050 Nos. and for 40 Ft Container – 2100 Nos

For website use, publish an exact container quantity only when it matches the current verified Indotray packing and dispatch configuration.
Using the Indotray Column Support System, up to 10 trays can be column-locked together for organized storage.

Reinforced corner locations support the column-locking arrangement and help maintain alignment of the stacked trays.

The stackable design is intended for core sheds, warehouses, field camps and long-term geological core storage.

A universal stackable lid can be used as part of the storage system.

Safe stacking in practice should always consider the loaded core weight, floor condition, storage environment and site handling procedures.
Yes. Indotray HQ plastic core trays are manufactured with UV-stabilized polymer for outdoor mineral exploration and core storage environments.

UV stabilization helps protect the polypropylene against degradation caused by prolonged exposure to sunlight and ultraviolet radiation.

This is particularly important for open core yards and exploration projects in high-UV regions such as Africa, the Middle East, Australia, India and South America.

The UV-stabilized construction helps support longer service life while maintaining tray strength, handling performance and dimensional stability.

Indotray core trays are designed for demanding field exposure, but good storage practice is still recommended wherever practical for maximum service life.
The Indotray HQ core tray uses a reinforced structural design developed specifically for the weight of diamond drill core.

Robust ribs underneath and around the core cavities help distribute load and resist twisting and sagging.

Outer support/skirting sections are designed with increased thickness, while reinforced corners provide additional stiffness and support for stacking.

The high-strength PP Copolymer construction combines impact resistance with the flexibility needed for repeated field handling.

The 4-row geometry supports the HQ core securely and helps spread the load instead of concentrating it at a few points.

Together, these features provide the high load-bearing capacity required for mineral exploration, core logging, transport and long-term drill core storage.
